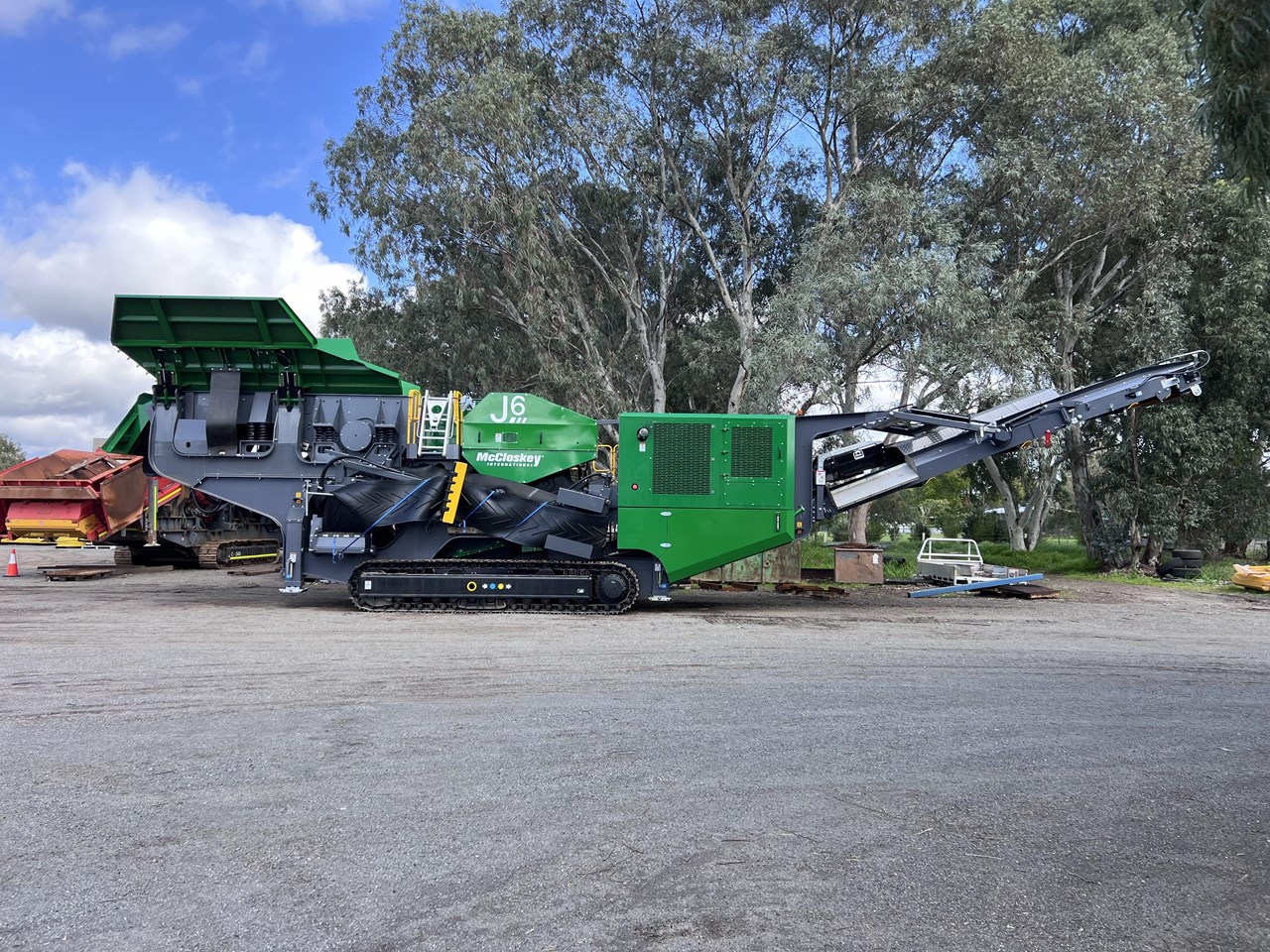

2024 MCCLOSKEY J6

Low hours, available now ex Perth. Ready to go now.

Approx 815 engine hours, 2024 machine.

J6 builds on the robust design of the proven performance McCloskey jaw crushers, while adding new productivity with an exciting line-up of features aimed at boosting productivity and offering enhanced durability across applications.

Suitable for feeding at high capacity with large excavators and front-end loaders with optional extended hopper wings installed.

Heavy duty and well proven industry standard hydraulic wedge adjusted, bolted jaw.
Designed to handle most ROM feed materials including Iron, Nickel, Lithium and Gold Ores.

Suitable for use in traditional granite / basalt / diorite / limestone and other high grade mined, quarried or recycled materials.

For increased efficiency the plant includes a live pre-screen for improved scalping prior to the Jaw chamber.

The on board hydraulic folding side / scalps conveyor increases stacking volume of fines when the by-pass material is not transferred straight through to the main conveyor.

Powered by a CAT C13 engine chamber uses the well proven hydraulic drive system found on other units from the McCloskey range.

Touch screen engine management and monitoring.

Outline Specifications.

HEAVY DUTY TRACK MOUNTED JAW CRUSHER WITH 1200X864MM JAW (Industry standard Jaw)

CSS ADJUST VIA HYDRAULIC WEDGES.

HARDOX® 450 HOPPER SIDES (15MM)

HOPPER EXTENSIONS

BOLTED JAW BOX

CAT TIER 3 C13 516HP (380KW)

HYDRAULIC OIL AW68

CHUTES INSTALLED ON THE MAIN CONVEYOR FOR OVERBAND MAGNET

HD MAIN CONVEYOR BELT WITH SCRAPER

UMBILICAL CORD WITH REMOVEABLE REMOTE CONTROL FOR CRAWLER TRACKS

DUST COVERS-SPRAY BARS-WATER PUMP

YELLOW HANDRAILS

LANGUAGE ON MANUALS & DECALS ENGLISH ANSI DECALS

TEDD CONTROLS.

POWERFUL HYDRAULIC JACK LEGS TO LEVEL PLANT ON SITE.

888CSE SELECTED McCloskey J6 Jaw Crusher OPTIONS for stock units.

50 MM CORRUGATED JAW PLATE (FOR GENERAL APPLICATIONS)
BELT PROTECTION DEFLECTOR PLATE UNDER CRUSHER-MANUAL
SHORTER PANFEEDER WITH LIVE PRE-SCREEN OPTION
PRE-SCREEN BOFAR 35-70MM (1 3/8 IN-2 3/4 IN) APERTURE
BLANKING PLATES TO PRE-SCREEN BOTTOM DECK:
SIDE DISCHARGE CONVEYOR (3-PLY BELT 650MM / 26IN).
OVERBAND MAGNET ON MAIN CONVEYOR
SAFETY BEACON LIGHTS

Transport Dimensions. (TBC)
L = 18.1m, H = 3.9m, W = 3.1m

Transport weight, all options, approx. 75,0000kgs. (Excluding Rock Breaker)

• All specifications / weights / dimensions are subject to confirmation.

Designed to withstand the toughest conditions worldwide, the McCloskey J6 Jaw Crusher delivers high TPH due to its innovative jaw chamber design and enhanced material flow.

The large, deep chamber has proven to be particularly effective in hard rock applications.

The well proven 48 x 34 (1200mm x 864mm) bolted jaw frame jaw opening accommodates large feed sizes, also contributing to higher production in material processing.

The material path is enhanced with the adjustable speed 47.4 x 7-8.8 (1204mm x 2360mm) double deck grizzly prescreen under the hopper.

Along with the variable speed pan-feeder, this allows for better sizing of material with a variety of mesh options.

Please contact us or call now for price and availability.

Photos are file photos when new for reference and guidance only.

Please call or email for current photos and service / condition report.
