SCHEPPACH HD12

HD12 Dust Collector 0.75HP 680cfm - LPHV System

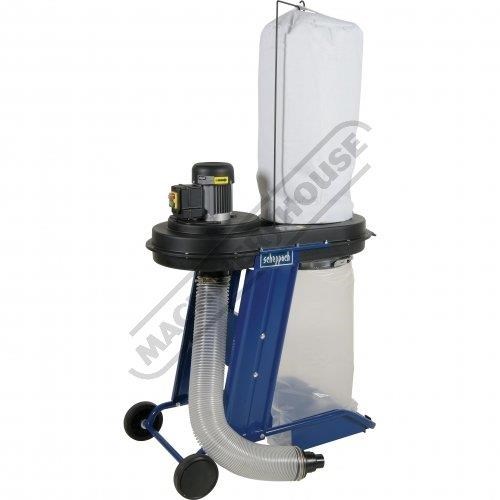

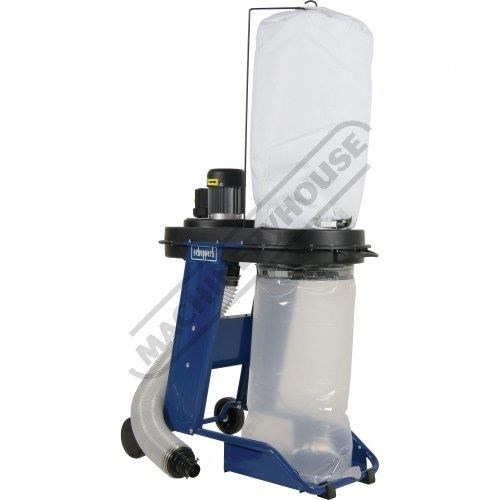

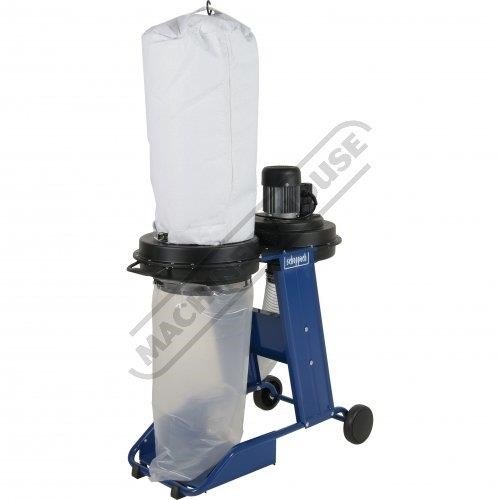

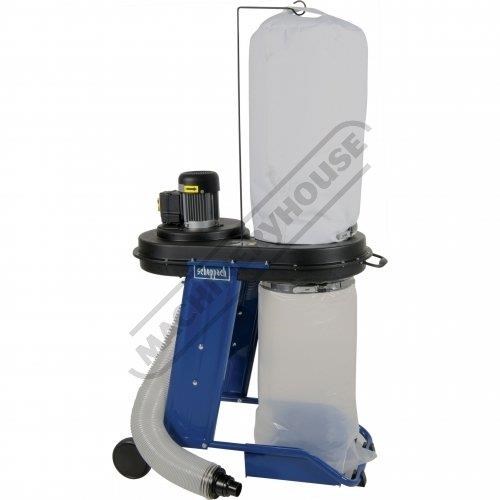

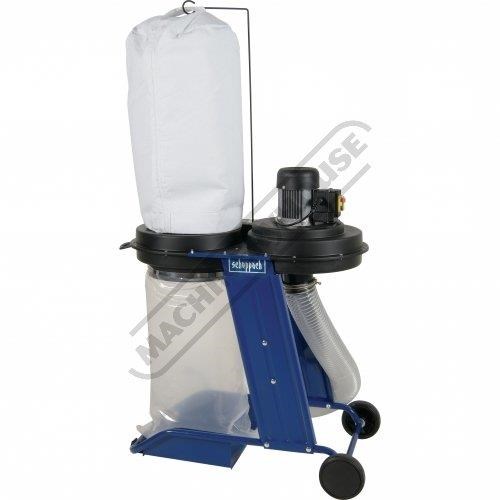

SCHEPPACH HD12 Dust Collector 0.75HP 680cfm - LPHV System
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W886

LPHV = Low Pressure High Volume System

The dust and shavings of LPHV extractors are sucked through the impeller fan blade and then the waste falls into the lower bag, the air being exhausted through the top filter bag, collecting some of the fine dust on the way. This type of extraction shifts huge volumes of air at low pressure and they are very efficient at removing bulk waste such from Planers, Thicknessers & Wood Lathes etc, hence some people call them chip collectors. The down fall with all LPHV dust collector systems is when you reduce the intake hose from 100mm to 32mm the air flow volume is affected dramatically.

Anyone working wood machinery without a dust extractor are not only creating a great deal of mess but is also damaging their health. The Scheppach HD12 is the solution to both these problems providing sufficient air flow to deal with all dust problems. Ideal for the smaller workshop.

Features:
German design & technology

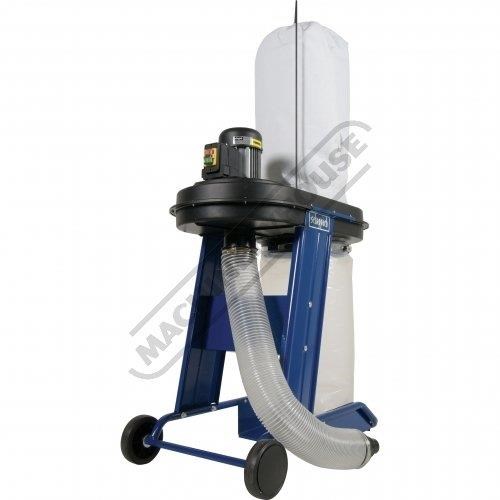

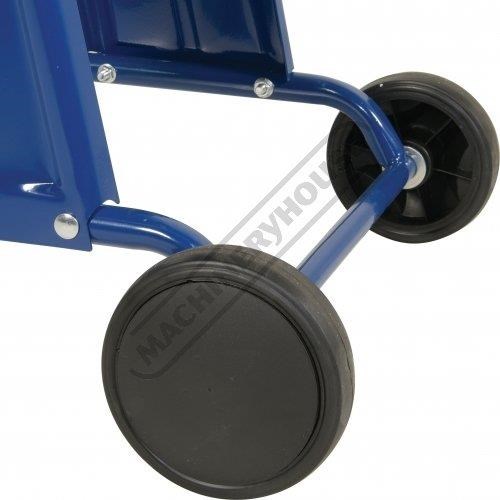

Portable on wheels with conveniently placed handle for easy manoeuvrability
680cfm air flow suction
??100mm single inlet

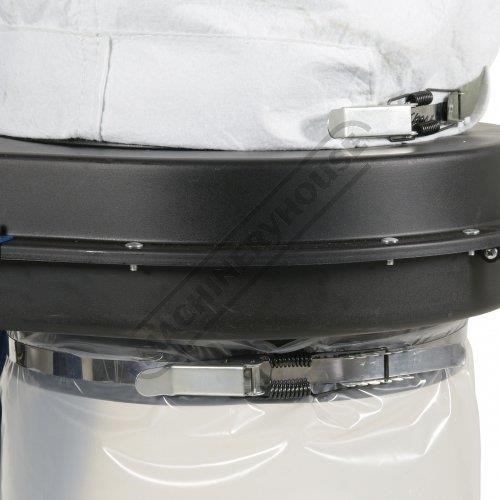

Quick-action clamp
5 Micron fine filter bag

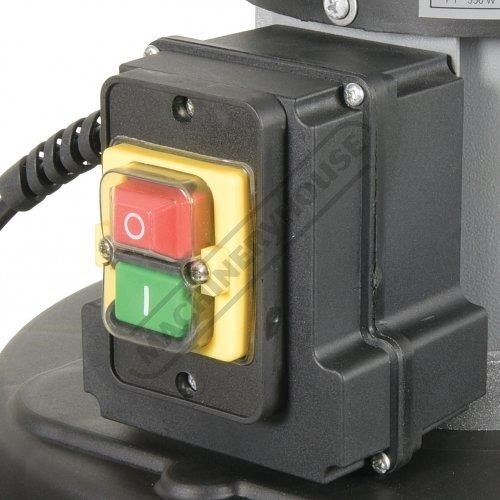

Powerful 0.56kW / 3/4HP 240V Motor provides efficient dust collection
100mm inlet collects large volumes of chips and dust debris

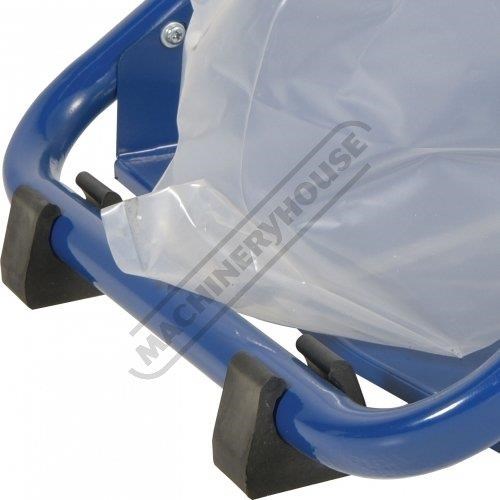

Large capacity dust bag allows extended use between emptying cycles

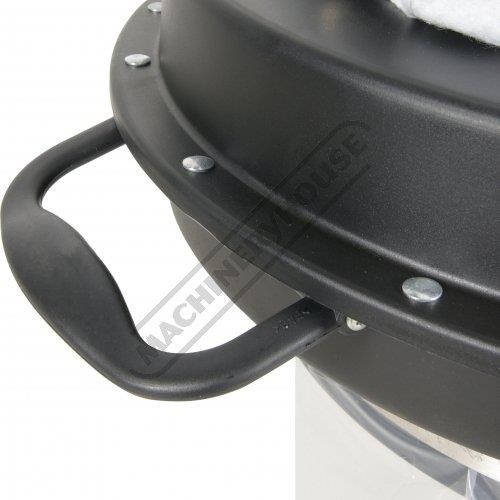

Carry handle allows the unit to be easily moved around the work area when required

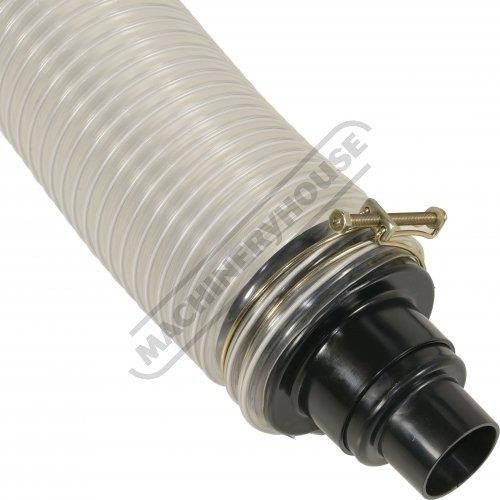

Flexible 2 metre collection hose for greater versatility when connecting equipment
Filling capacity: 75 Litre

Includes:

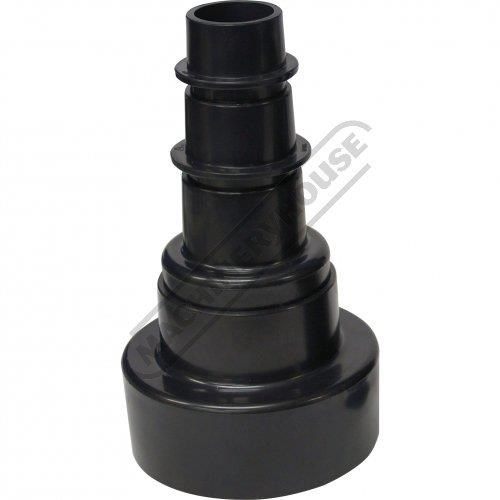

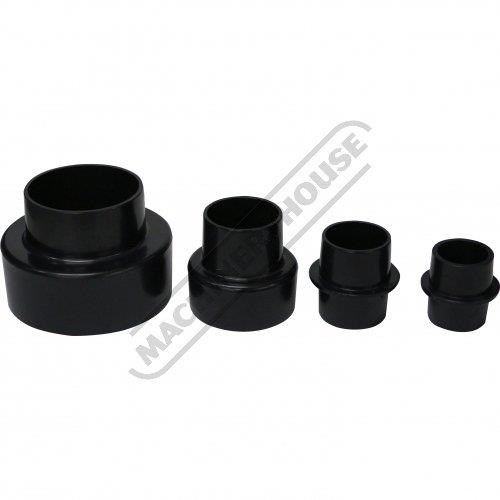

- 4 in 1 reducer attachment 100-35mm when all connected: (1 x 100-68mm reducer 1 x 63-45mm reducer 1 x 40-40mm reducer 1 x 35-35mm reducer)



Specifications:
ORDER CODE: W886
MODEL: HD12
Type: Dust Collector
Type: ~
Airflow (CFM): 680
LPHV - Low Pressure High Volume (Yes / No): Yes
HPLV - High Pressure Low Volume (Yes / No): No
Inlets / Diameter (No. / mm): 1 x ??100
Outlets / Diameter (No. / mm): ~
Motor Power (kW / hp): 0. 56 / 0.75
Voltage (V / amp): 240 / 10
Floor Space (W x D x H) (mm): 900 x 520 x 1570
Nett Weight (kg): 24
