SIMEX PL50.20 SELF LEVELLING PLANERS
Price:
POA
Report Listing
Contact Seller
.png)
Features
| Title | SIMEX PL50.20 SELF LEVELLING PLANERS |
| Make | SIMEX |
| Price | POA |
| Listing Type | New |
| Stock Number | PL50.20 |
| RefCode | TA711670 |
Description

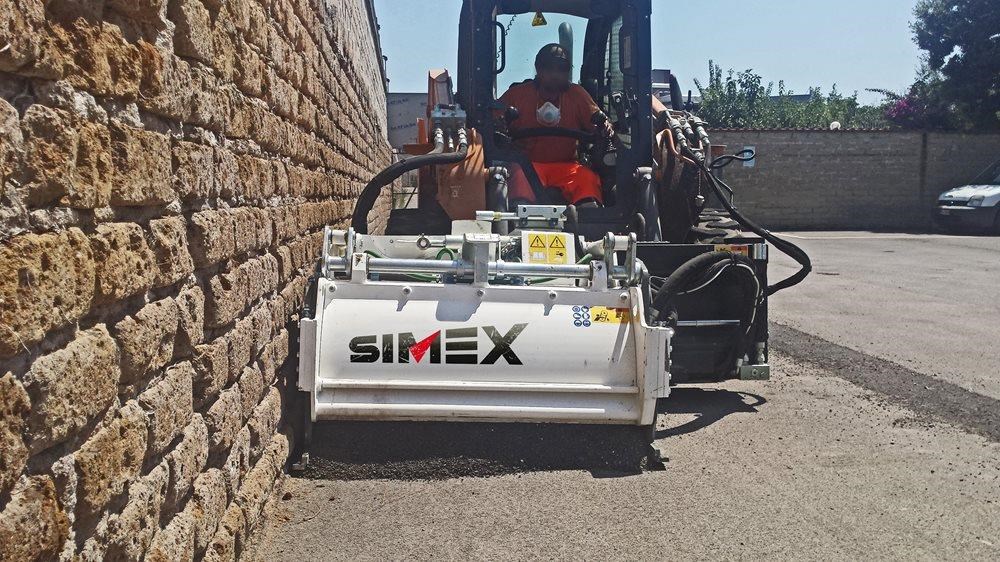

New Simex PL50.20 Self Levelling Planer.
Specifications
Performer: Standard
Standard drum
Width (mm): 500
Depth (mm): 0-170
Special drums
Width (mm): 50-500
Max depth (mm): 230
Self levelling angel: 30 Degrees
Side shift: Hydraulic
Tilt: Automatic / Hydraulic
Inclination: 16 Degrees
Operating weight (2) (Kg): 900 - 1050
Required oil flow (l/min): 90-160
Required oil pressure (3) (bar): 300-160
(1) Concerning the planer standard verison, without the removal belt.
(2) User is responsible for ensuring that the equipment meets the prime mover's specifications and weight requirements.
(3) The pressure must be in inverse relation with the flow rate available and vice versa.

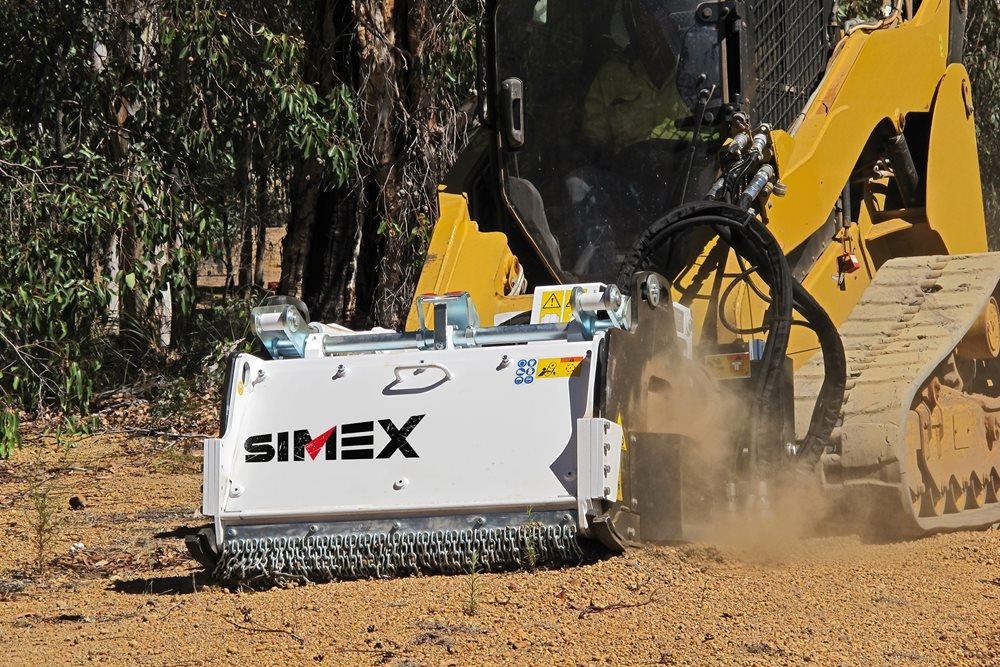

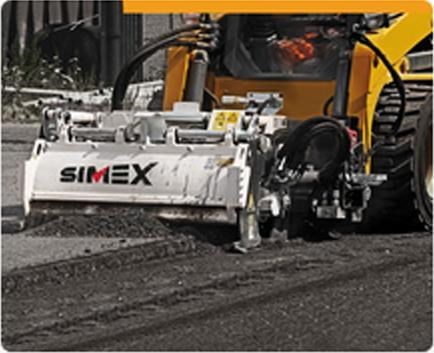

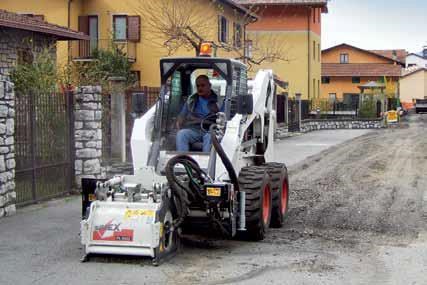

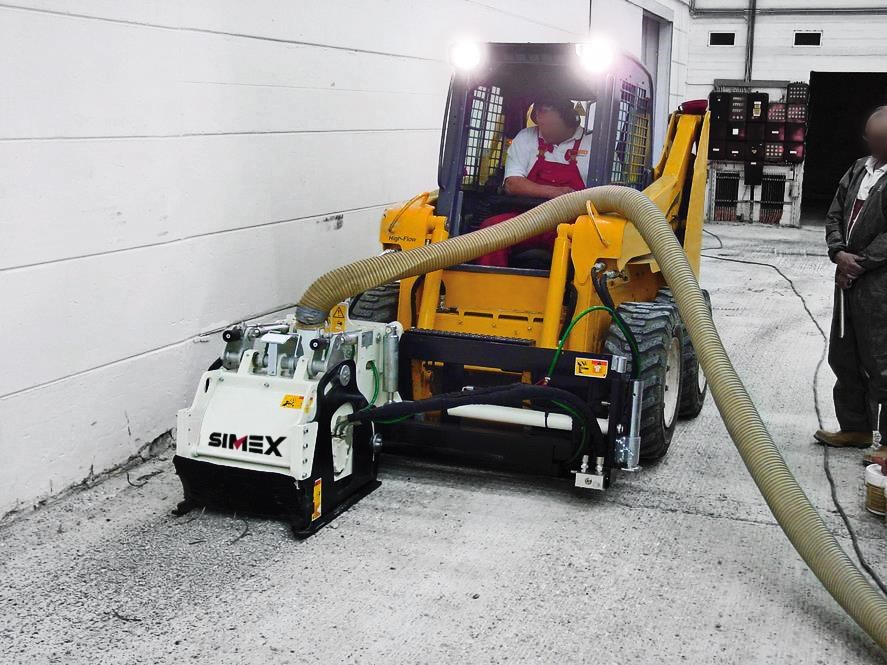

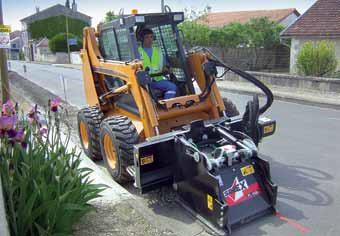

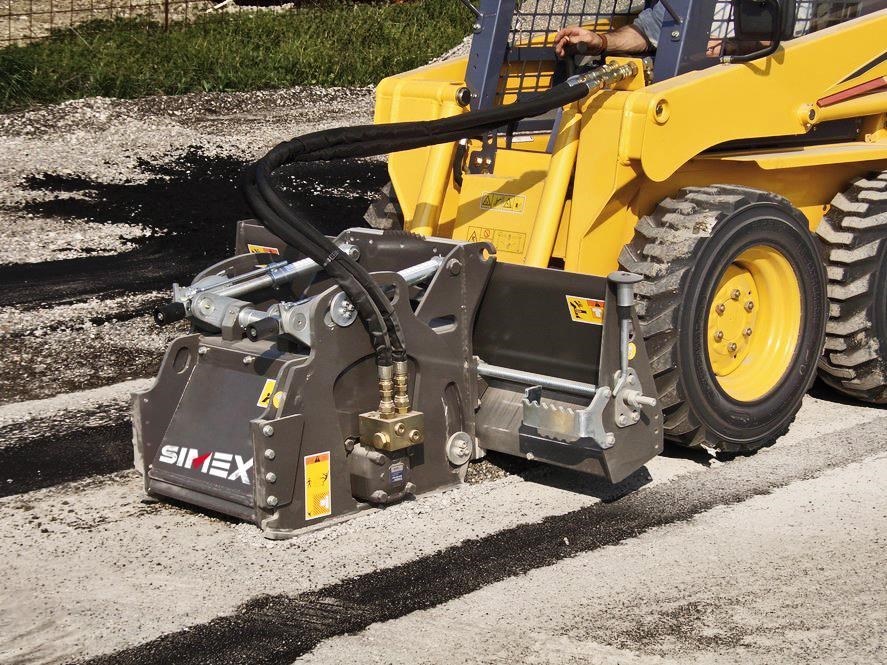

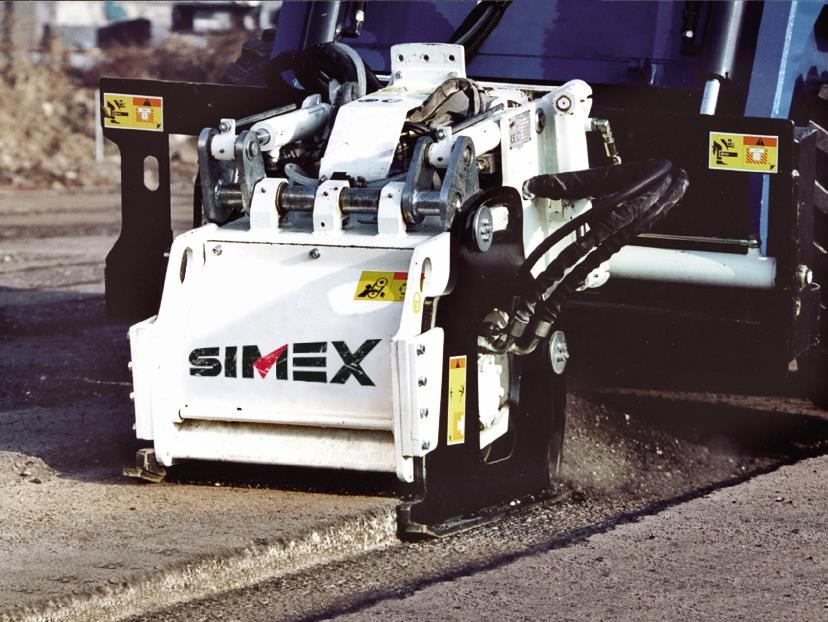

Designed for removing the entire layer of asphalt or cement in preparation for trenching or for milling deteriorated sections for later resurfacing.
Self-levelling to the surface.
Milling depth is constant in any condition regardless of the ground contour and the attachment's position with respect to the prime mover. Lateral slides on the planer automatically align to the milling surface.
Operator is free of problems due to poor visibility of the work area, because the milling depth exactly and constantly corresponds to that programmed thanks to self-levelling feature.
SIMEX patent

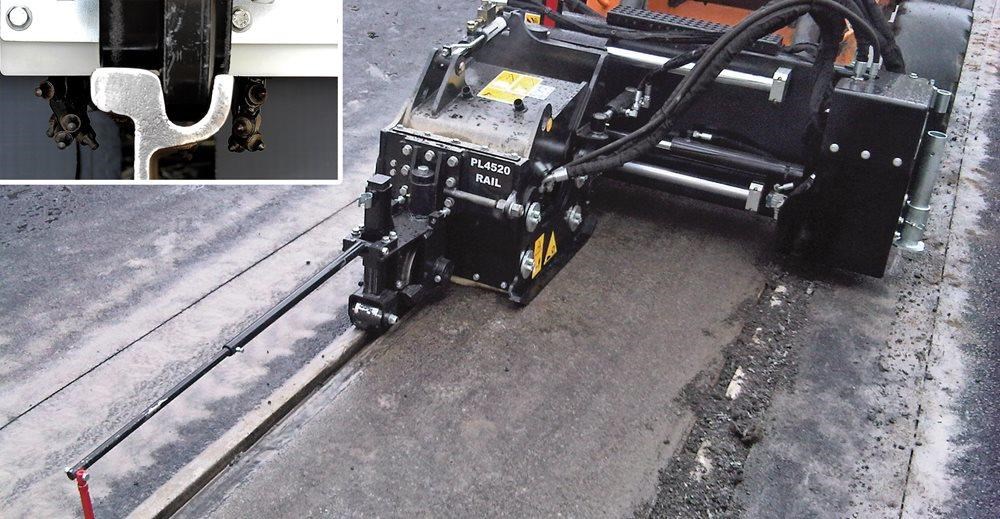

The slides move independently of each other and precisely following the surface to the right or left. The independent depth adjustment on RH and LH sides combined with the self-levelling system achieves perfectly flat surfaces with side-by-side planing.
Wide range of other new & used attachments to suit most makes & models of Excavators.
Buckets: General Purpose (GP), Sieve / Skeleton, Mud / Batter, Tilting Mud / Batter and Rock Buckets. Various sizes available.
Rippers
Grapples / Grabs 5 Finger Grabs Manual and Hydraulic Rotating Grabs.
Quick Hitches Tefra Brand.
Compaction Wheels
Compaction Plates PneuVibe Brand.
Pulverisers / Multi-Processors Rhino (Everdigm) brand.
Rock Breakers New Rhino (Everdigm) Brand Rock Breakers (Hydraulic Hammers). Various used rock breakers for sale. Rock Breaker Finance also available.
Rock Breaker Parts & Chisels/Moils Most makes and models, including: Rhino, Everdigm, GB, Soosan, Rammer, Furukawa, Krupp, Montabert, Atlas Copco & much more.
Augers Auger Torque brand.
Simex Attachments Planers, Crushing Buckets, Wheel Saws,
Rotary Cutters, Asphalt floats.
And many more attachments available.
Call or Email us for the latest price & availability.
About Queensland Rock Breakers & RD Williams Excavator Parts
Acquired by RD Williams Excavator Parts, Queensland Rock Breakers is a leading supplier of rock breakers & rock breaker parts.
Additionally, our dedicated rock breaker workshop is equipped to handle all your repairs & full rebuilds for all makes of rock breakers.
RD Williams Excavator Parts is a leading supplier of high quality new replacement and used excavator parts for most makes & models of Excavators. Being one of the largest Australian distributors for many overseas manufacturers, we can provide any excavator part or component you may require, usually off the shelf.
With over 450+ excavators dismantled, we have an extensive range of used excavator parts.
Our range includes: Undercarriage Parts, Hydraulic Cylinders, Pumps & Pump Parts, Final Drives, Slew Motors & Reductions, Pins & Bushes, Seals & Seal Kits, Cabins, Excavator Attachments, Filters, Arms & Booms and many more parts.
